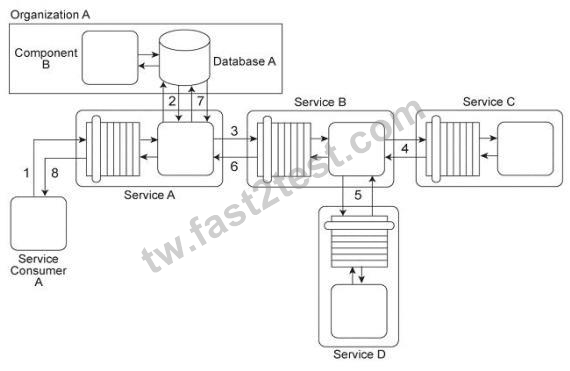

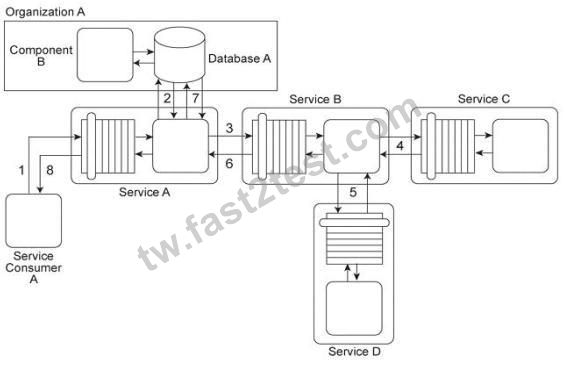

Service Consumer A sends a request message to Service A (1) after which Service A retrieves financial data from Database A (2). Service A then sends a request message with the retrieved data to Service B (3). Service B exchanges messages with Service C (4) and Service D (5), which perform a series of calculations on the data and return the results to Service A.
Service A uses these results to update Database A (7) and finally sends a response message to Service Consumer A (8). Component B has direct, independent access to Database A and is fully trusted by Database A.
Both Component B and Database A reside within Organization A.
Service Consumer A and Services A, B, C, and D are external to the organizational boundary of Organization A.

Component B is considered a mission critical program that requires guaranteed access to and fast response from Database A.
Service A was recently the victim of a denial of service attack, which resulted in Database A becoming unavailable for extended periods of time (which further compromised Component B). Additionally, Services B, C, and D have repeatedly been victims of malicious intermediary attacks, which have further destabilized the performance of Service A.
How can this architecture be improved to prevent these attacks?

• A. Service Consumer A generates a private/public key pair and sends this public key and identity information to Service A.
  Service A generates its own private/public key pair and sends it back to Service Consumer A.
  Service Consumer A uses the public key of Service A to encrypt a randomly generated session key and then sign the encrypted session key with the private key. The encrypted, signed session key is sent to Service A.
  Now, this session key can be used for secure message-layer communication between Service Consumer A and Service A.
  The Service Perimeter Guard pattern is applied to establish a perimeter service that encapsulates Database A in order to authenticate all external access requests.
• B. The Direct Authentication pattern is applied so that when Service Consumer A submits security credentials, Service A will be able to evaluate the credentials in order to authenticate the request message. If the request message is permitted, Service A invokes the other services and accesses Database A.
  Database A is replicated so that only the replicated version of the database can be accessed by Service A and other external service consumers.
• C. A utility service is created to encapsulate Database A and to assume responsibility for authenticating all access to the database by Service A and any other service consumers.
  Due to the mission critical requirements of Component B, the utility service further contains logic that strictly limits the amount of concurrent requests made to Database A from outside the organizational boundary. The Data Confidentiality and Data Origin Authentication patterns are applied to all message exchanged within the external service composition in order to establish message-layer security.
• D. Services B, C, and D randomly generate Session Key K, and use this key to encrypt request and response messages with symmetric encryption. Session Key K is further encrypted itself asymmetrically. When each service acts as a service consumer by invoking another service, it decrypts the encrypted Session Key K and the invoked service uses the key to decrypt the encrypted response. Database A is replicated so that only the replicated version of the database can be accessed by Service A and other external service consumers.

Service Consumer A sends a request message with a Username token to Service A (1).
Service B authenticates the request by verifying the security credentials from the Username token with a shared identity store (2), To process Service Consumer A's request message. Service A must use Services B, C, and D.
Each of these three services also requires the Username token (3. 6, 9) in order to authenticate Service Consumer A by using the same shared identity store (4, 7, 10). Upon each successful authentication, each of the three services (B, C, and D) issues a response message back to Service A (5, 8, 11).
Upon receiving and processing the data in all three response messages, Service A sends its own response message to Service Consumer A (12).

There are plans implement a single sign-on security mechanism in this service composition architecture. The service contracts for Services A, C, and D can be modified with minimal impact in order to provide support for the additional messaging requirements of the single sign-on mechanism. However, Service B's service contract is tightly coupled to its implementation and, as a result, this type of change to its service contract is not possible as it would require too many modifications to the underlying service implementation.
Given the fact that Service B's service contract cannot be changed to support single sign- on, how can a single sign-on mechanism still be implemented across all services?

• A. Apply the Brokered Authentication pattern to establish Service A as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to other services. Apply the Trusted Subsystem pattern to create a utility service that acts as a trusted subsystem for Service B.
  This utility service is able to perform authentication using the SAML token from Service A and can then generate a Username token by embedding its own credentials when accessing Service B.
  This way, Service B can perform authentication of request messages as it does now, but it can still participate in the single sign-on message exchanges without requiring changes to its service contract.
• B. Replace the Username tokens with X.509 digital certificates. This allows for the single sign-on mechanism to be implemented without requiring changes to any of the service contracts.
• C. Apply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to Services C and D.
  Create a second service contract for Service B that supports single sign-on. This way, Service B can still perform authentication of incoming requests using the old service contract while allowing for the processing of SAML tokens using the new service contract.
• D. Apply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token on behalf of Service Consumer A, and forwards this token to Services C and D.
  Create a new utility service is positioned between Service A and Service B.
  This utility service perform a conversion of the SAML token to a Username token, and then forwards the Username token to Service B so that Service B can still perform authentication of incoming requests using its own security mechanism.
