最新的Cisco 352-001免費考試真題

問題1

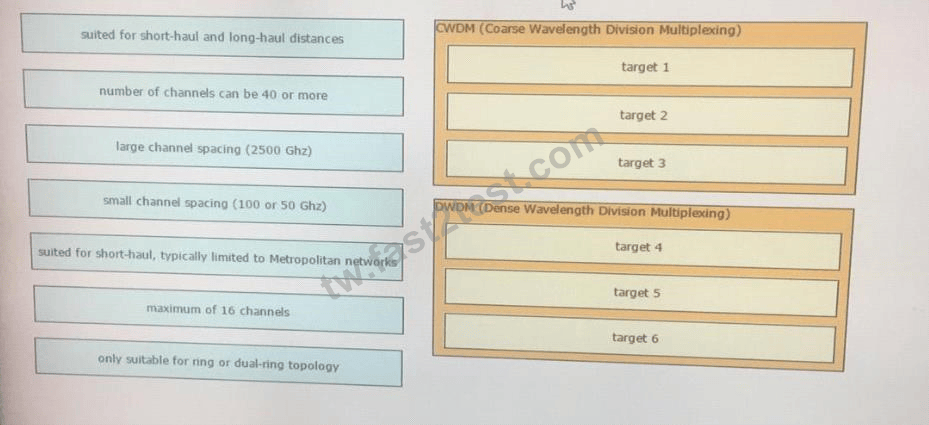

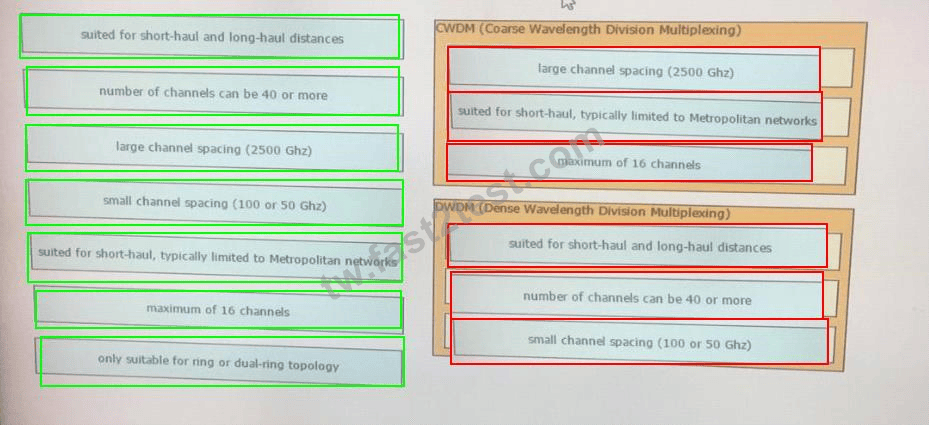

Drag and drop the optical technology design characteristics on the left to the correct optical technologies on the right. Not all options are used

正確答案:

問題2

Which two design solutions provide IPv6 interdomain multicast? (Choose two)

A. MSDP

B. PIM SSM

C. Auto-RP

D. PIM-DM

E. Embedded RP

正確答案: B,E

問題3

Which three processes are part of the ITILv3 Service Operation? (Choose three)

A. Incident management

B. Release and deployment management

C. Change management

D. Problem management

E. Service-level management

F. Event management

正確答案: A,D,F

問題4

You are providing a design review for a service provider that offers MPLS Layer 3 VPN services. Which two considerations of using RT Constrained Route Distribution are true? (Choose two)

A. The PE and RR routers must support this feature

B. The PE routers must advertise the default Route target filter toward the RR routers

C. This feature must be enabled on all devices in the network at the same time

D. The RR must advertise the default Route Target filter toward the PE routers

E. The RRs do not need to advertise any Route target filter toward the PE routers

正確答案: A,D

問題5

You are a network designer and you must ensure that the network you design is secure . How do you plan to prevent infected devices on your network from sourcing random DDoS attacks using forged source address?

A. ACL filtering by destination

B. ACL based forwarding

C. unicast RPF strict mode

D. unicast RPF loose mode

正確答案: C

問題6

Which two design considerations must be considered when introducing FCoE into an existing network? (Choose two)

A. Twinaxial cabling can be used to transmit FCoE traffic between a server and its directly connected Ethernet switch, if is less than 10 meters away

B. The existing network must support a MTU of 3280 bytes.

C. All the servers in the data center must be retrofitted with Converged Network Adapters.

D. Optical cabling is needed to transmit FCoE traffic between a server and its directly connected Ethernet switch.

E. The FCoE QoS markings may overlap with call signaling QoS markings.

正確答案: C,E

問題7

A network architect must redesign a service provider edge, where multiservice and multitenant PEs are currently present. Which design feature should be minimized in the new design to achieve reliability?

A. bridging

B. fate sharing

C. unicast overlay routing

D. redundancy

正確答案: B

問題8

Which fast convergence mechanism involves tunneling to a non-neighbor router?

A. EIGRP FS

B. Remote LFA

C. LFA

D. BGP PIC

正確答案: B

問題9

A service provider hires you to design its new managed CE offering to meet these requirements:

Which tunnelling technology do you recommend?

A. FlexVPN

B. LISP

C. Point-to-point GRE

D. DMVPN

正確答案: B

問題10

A network engineer confirms that STP is enabled on all switches in the network. An edge switch is not sending or receiving configuration BPDUs, although it appears that everything is functioning correctly in the network. Which design explanation is true?

A. BPDU Guard is enabled on the port.

B. Bridge Assurance is enabled on the port.

C. Storm control broadcast is enabled on the port.

D. REP is enabled on the port.

正確答案: D

問題11

You are designing a network for a branch office. In order to improve convergence time, you are required to use the BFD feature Which four routing protocols can you use to facilitate this? (Choose four.)

A. EIGRP

B. static

C. BGP

D. RIP

E. IS-IS

正確答案: A,B,C,E

問題12

When designing a WAN that will be carrying real-time traffic, what are two important reasons to consider serialization delay? (Choose two )

A. Serialization delays are invariable because they depend only on the line rate of the interface

B. Serialization delay depends not only on the line rate of the interface but also on the size of the packet

C. Serialization delays are variable because they depend on the line rate of the interface and on the type of the packet being serialized.

D. Serialization delays are variable because they depend only on the size of the packet being serialized

E. Serialization delay is the time required to transmit the packet on the physical media.

正確答案: C,D

問題13

Which two statements describe how including cisco IPoDWDM proactive protection in an optical design would minimize packet loss in the event of a fiber cut? (Choose two.)

A. It is effective both when you have redundant and nonredundant Layer 3 MPLS paths

B. It uses a "not to exceed" predefined BER threshold to cause traffic redirection

C. It uses the FFC field on the OTN frame to trigger protection

D. It reroutes the optical circuit after an event that impacts service

正確答案: B,C

說明：（僅 Fast2test 成員可見）

問題14

Which MPLS TE design consideration is true?

A. MPLS TE requires Layer 3 VPN full-mesh topology deployment

B. MPLS TE optimizes the routing of IP traffic, given the constraints imposed by backbone capacity and application requirements.

C. MPLS TE provides link and node protection

D. MPLS TE replaces LDP and the dependency of the IGP to identify the best path.

正確答案: B

問題15

Refer Io the exhibit. The company must connect five new remote sites to the network core of its corporate headquarters with path reliability These remote sites run voce and data traffic Two data centers are in the core Which two virtualized network solutions can achieve the required goal? (Choose two) Use PfR to dynamically change traffic flows tor forwarding frames and packets out of the remote sites

A. Use IPsec over GRE encapsulation with a DS3 line directly from each remote site router to the data . center routers

B. Create an IPsec tunnel over a new point to point leased line directly from each remote site router to A the data center routers

C. Deploy MPLS Layer 2 VPN to interconnect Itie two data centers the core to the remote sites

D. Deploy MPI S Layer 3 VPN

正確答案: A,C
